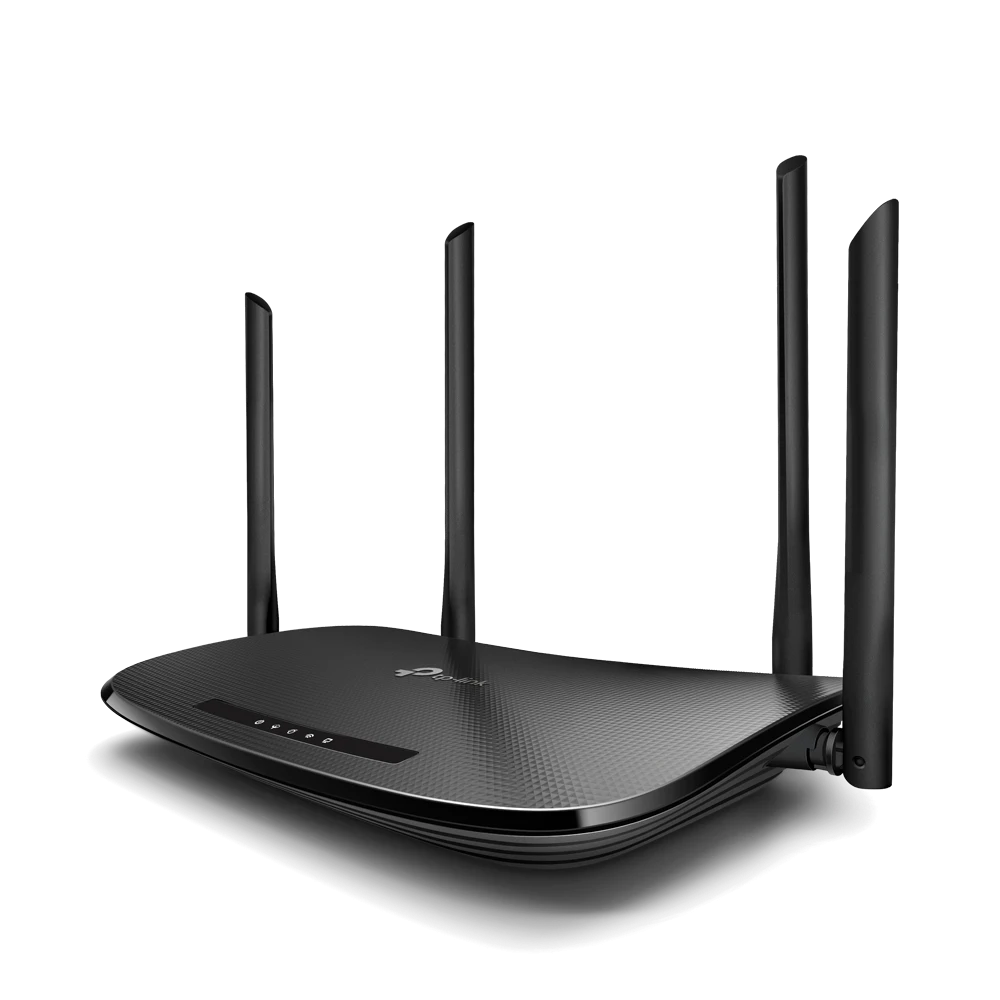

Modem-Router TP-LINK Archer VR300 AC1200

Especificaciones Tecnicas

Fabricante:

TP-LINK

Modelo:

Archer VR300

CARACTERÍSTICAS DE HARDWARE

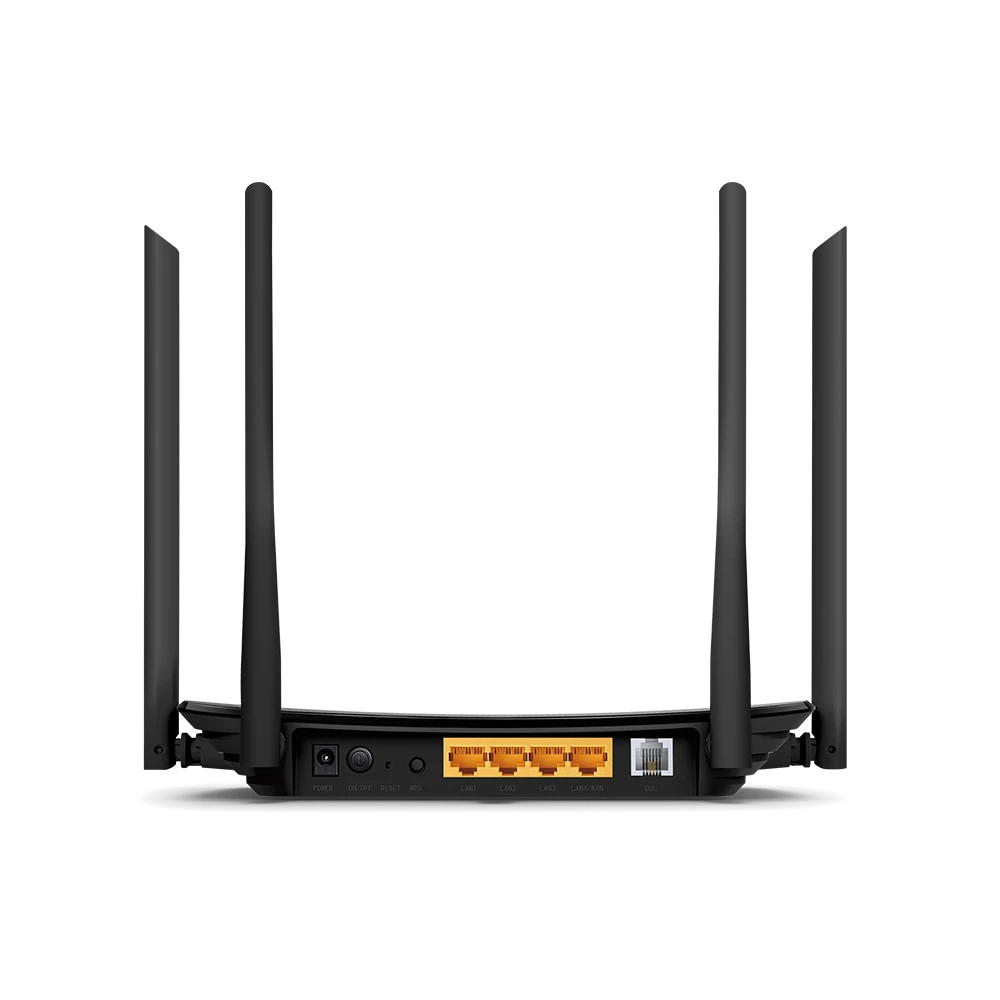

Interface

3 10/100 RJ45 LAN Ports
1 10/100 RJ45 LAN/WAN Port
1 RJ11 Port

Botón

WPS Button
Power On/Off Button
Reset Button

Fuente de Alimentación

12V/1A

Estándares VDSL2

ITU G.993.2, Up to 17a pro¬le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)

Estándares ADSL

Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

Estándares ADSL2

ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)

Estándares ADSL2+

ITU-T G.992.5

Dimensiones (W X D X H)

230*144*37 mm

Tipo de Antena

4x fixed external antennas

CARACTERÍSTICAS INALÁMBRICAS

Estándares Inalámbricos

IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz

Velocidades Inalámbricas

867Mbps at 5GHz
300Mbps at 2.4GHz

Potencia de Transmision

2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)

Funciones Inalámbricas

Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable

Seguridad Inalámbrica

WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, QSS(WPS)

CARACTERÍSTICAS DE SOFTWARE

Calidad de servicio

ATM QoS, Bandwidth Control

Seguridad

NAT Firewall, Access Control, IP and MAC Address Binding

Modos de Funcionamiento

VDSL/ADSL Modem Router, Wireless Router

Administración

Web Based Con¬guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Passthrough

Protocolos

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC − Up to 8 PVCs

Funciones Avanzadas

Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, DNS Relay,
DDNS, IGMP V1/V2/V3

Red de invitados

2.4GHz guest network, 5GHz guest network

Otros

Certificacion

CE, RoHS, RCM

Contenidos del Paquete

· AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide

Requisitos del Sistema

· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access)

Ambiente

· Operating Temperature: 0°C~40°C (32°F ~104°F)
· Storage Temperature: -40°C~70°C (-40°F ~158°F)
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
